February 16, 1995

(The original PostScript version of this memo
includes a number of screen snapshots.)

Since you asked about Tcl, I thought I'd let you know what I've done with it. I've got two Tcl-based applications, one running on the Master Controller card under VxWorks and the other running on a workstation under UNIX:

                        Master
                      Controller           Workstation
                      .--------.             .-----.
                      | gentle |<----------->| moi |
                      `--------'             `-----'

moi (MEDS Operator Interface) is the user interface program you see running on my workstation sometimes, displaying event messages, status blocks, etc., received from the LZP system. moi is programmed in Tk, a superset of Tcl that includes support for X Windows and GUI objects.

gentle (GENeric TcL sErver) is a network server program that provides each network client with its own Tcl interpreter. gentle's Tcl has been extended with networking commands, memory access commands, and various MEDS commands (e.g., getAlias, logEvent, mapRam, waitInit, and a whole slew of the TPCE-LZP commands).

moi and gentle communicate using ASCII strings (sent as XDR strings in XDR network records). For example, the event logging loop can be tested by:

  1. Pressing moi's "Ping Events" button to send a "logEvent code message" command to gentle.
  2. gentle calls the MEDS eventmsg() function to log the message.
  3. The MEDS event server then sends (via my mbc program) the event message back to moi.
  4. moi adds the incoming message to its scrolling display of event messages.

To display a particular status variable on the screen, moi:

  1. Sends a "peek variable" command to gentle.
  2. gentle retrieves the value of the specified variable, formats it in ASCII, and sends it back to moi.
  3. moi reads the returned value and displays it on the screen.

The above is a simplification of the exchange. The actual command sent to gentle is "region Get variable", where region specifies the MEDS status block (e.g., "APSTATUS") and variable is the name of the field within the block. moi and gentle both make use of an object-oriented extension of Tcl: [incr Tcl] (the Tcl equivalent of C++). [incr Tcl] provides support for C++-like classes. In the command above, region is a memory region object that responds to a Get message by returning the value of the requested variable. region also responds to a Set message; for example:

    $xpstatus Set numRejectedFrames 100000000

raises the XP's rejected frame count to 100,000,000.


A Quick Introduction to Tcl

Tool Command Language (Tcl) is a simple, extensible, command language whose interpreter can be embedded in any application. "#"s indicate comment lines. The basic command syntax is:

    command argument(s)

Arguments are frequently specified using UNIX-style "-" options; e.g.,

    Activate catalog -version N

Curly braces and double quotes are used to enclose strings. Square brackets enclose nested commands. The following command:

    set xpstatus [Region #auto XPSTATUS -mapFunction mapSTS]

evaluates the Region command (which creates a region object and maps to the XP status block) and stores the resulting value (a region handle) in variable xpstatus.

The value of a variable is referenced by prefixing a dollar sign to the variable name. In the following command:

    $xpstatus Get gsHealthMsg

$xpstatus is replaced by the region handle returned above, so the actual command that will be executed is:

    regionHandle Get gsHealthMsg

(This results in a "Get gsHealthMsg" command being sent to the region object.)

Tcl makes Perl look like a cross between COBOL and APL.


gentle - A Generic Tcl Server

As mentioned before, gentle is a network server that provides each client with its own Tcl interpreter. When gentle receives a command from a client, it passes the command to that client's interpreter for execution. A "client write message" command allows the interpreter to send responses back to the client. gentle can also be run in tty mode (i.e., you type commands in at the command line) and on a UNIX workstation. For example, I can initiate a data session from the command line on my Sun:

    % gentle -tty
    set mcr [mcrOpen 3000@vxlzp1]        -- Connect to MC.
    $mcr Activate DS8V2                  -- Activate catalog DS8V2.
    set sds [mcrOpen 3000@128.183.92.97] -- Connect to Data Generator.
    $sds Activate DS8V2                  -- Activate data generation.
    exit
    %

gentle adds a number of commands to the base Tcl command set. In the listing below, optional command options are not shown. For example, the

    peek location

command supports the following options:

    peek ?-address format? ?-format format?
         ?-signed? ?-type type? ?-unsigned? ?-write? location

(Since square brackets have meaning in Tcl, Tcl documentation usually encloses optional arguments in question marks; e.g., "?-type type?".)

As another example, the full network call command supports these options:

    call server?@host? ?-nowait? ?-connect command?
         ?-error command? ?-input command?

Networking Commands (UNIX and VxWorks)

call server?@host?
This command establishes a client connection with a network server.

listen port
listener answer
listener close
listener poll
These commands listen for and answer connection requests from clients.

connection close
connection poll
connection read
connection write string
These commands read and write information on a network connection.

Memory Access Commands (UNIX and VxWorks)

(A signal handler is used to trap bus errors and access violations.)

address -input location
address -offset numBytes location
address -delta base location
These commands manipulate "%p" pointers (used in the other memory access commands).

dump ?-count numBytes? location
This command generates a formatted dump of a memory block.

fill value start end
This command replicates a value throughout a memory block.
find value start end
This command searches for a value in a memory block.

peek location
poke location value
These commands read values from and store values in memory locations. Different data types are supported: signed and unsigned bytes, chars, shorts, ints, longs, floats, doubles, and strings.

Shared Memory Commands (UNIX and VxWorks)

map name
This command maps a named, shared memory segment into the gentle process's address space. Naming is implemented under UNIX using an NDBM database and, under VxWorks, using the system symbol table. (Commands for mapping to MEDS memory regions are found further down.)

segment address
segment load file
segment save file
segment size
segment unmap
These commands perform various operations on a mapped segment.

Miscellaneous Commands (UNIX and VxWorks)

client poll
client read
client write message
These commands operate on the network connection (or TTY interface) to this interpreter's client.

ping
Pong!

timer interval ?-command command? ?-periodic?
timer cancel
This command creates a one-shot or cyclic timer that, each time it fires, executes a Tcl command.

tod
This command returns the current time-of-day.

MEDS Commands (UNIX and VxWorks)

mcrOpen server?@host?
This command establishes a network connection (hereafter called mcr) with a Master Controller.

mcr Close
mcr Connected
mcr Poll
These commands operate on a connection to a Master Controller.

mcr Activate file
mcr Distribute source destination user?@host?
mcr ListCatalogs ?wildcard_spec?
mcr ListDataSets ?-session ID?
mcr LoopBack text
mcr SendStatus ?interval?
mcr Disable ?subsystem(s)?
mcr Enable ?subsystem(s)?
mcr Flush ?subsystem(s)?
mcr NoOp ?subsystem(s)?
mcr Reset ?subsystem(s)?
mcr ShutDown ?subsystem(s)?
mcr Test ?subsystem(s)?
mcr Zero ?subsystem(s)?
mcr TimeSpan start length ?-repeat?
These commands send the respective commands to the Master Controller and wait for responses.

MEDS Commands (VxWorks Only)

getAlias name
putAlias name value ?-global?
showAlias
These commands are used to access MEDS aliases.

logEvent code message
This command logs an event message.

mapGPA ?target?
mapPCA ?target?
mapSCB ?target?
mapTCA ?target?
mapRAM name ?-make size?
mapSTS name ?-make size?
These commands return the addresses of the various types of MEDS memory regions.

waitInit
It's a long wait, sometimes!

[incr Tcl] Classes (UNIX and VxWorks)

The Region class:

    class Region {
        member mapFunction       -- Default is "mapRAM".
        constructor()
        destructor()
        method Fill()            -- Defines fill space.
        method Define()          -- Defines typed field.
        method Get()             -- Gets value of field.
        method GetInfo()         -- Indexed access to arbitrary info.
        method IndexedAddress()  -- Computes address into array field.
        method Set()             -- Stores value in field.
        method SetInfo()         -- Indexed access to arbitrary info.
    }

provides a concise means of mapping to and defining the layout of a MEDS memory region. For example, the following definition of the XP status region is found in "/folks/hilinski/lzp/etc/defineXP.tcl":

    #    Map to XP status block.
    set xpstatus [Region #auto XPSTATUS -mapFunction mapSTS]
    #    MEDS status header.
    DefineStatusHeader $xpstatus
    #    XP information.
    $xpstatus Define inProgress {byte -unsigned}
    $xpstatus Define dataDirection char
    $xpstatus Fill byte 6
    $xpstatus Define sessionID    -- Default data type is ULONGWORD.
    #    Frame counts.
    $xpstatus Define numInputFrames
    $xpstatus Define numRejectedFrames
    $xpstatus Define ...

A specific field in the status block can be retrieved:

    client write [$xpstatus Get numInputFrames]
    client write [$xpstatus Get gsHealthMsg]

or modified:

    $xpstatus Set numInputFrames 1234
    $xpstatus Set gsHealthMsg "Never been faster!"

The Info methods are used to store arbitrary information. For example, to access particular entries in the XP's Virtual Channel Status table, you need to know the size of an individual entry. "defineXP.tcl" computes and saves this information as follows:

    $xpvcs SetInfo sizeOfVCS            [expr [$xpvcs GetInfo nextOffset] - $baseOffset]]

This information can be retrieved and passed to the Get and Set methods in order to access particular entries in the table.

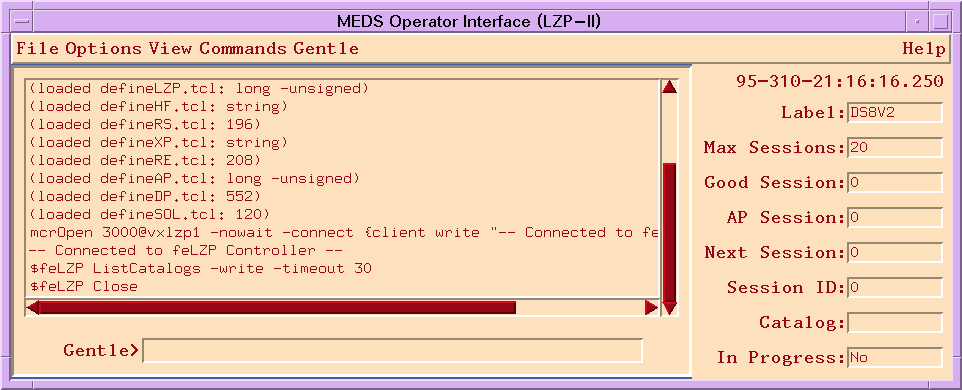

moi - The MEDS Operator Interface

moi is a generic, Tcl/Tk-based, graphical user interface. Tk is a Motif-like, X Windows toolkit that contains an embedded Tcl interpreter; this allows user interfaces to be programmed entirely in Tcl - no C coding required. moi adds a couple of Tcl extensions: the gentle networking commands (e.g., call, listen, etc.) and the gentle timer command.

moi initially reads a Tcl script file that defines the user interface. My file, "/folks/alexm/source/moi/lzp", connects moi to the gentle server and to the MEDS event server, and then creates the main window of my LZP interface; this window contains:

The menu bar has pull-down entries for:

  1. Viewing Pages (e.g., the various subsystem status pages and the segment directory).
  2. Commanding the LZP Rack.
  3. Commanding the Spacecraft Data Simulator.

[incr Tcl] Classes

[incr Tcl] was used to great advantage in my "lzp" application. I defined the following classes:

    Box                     -- For grouping items on a page.
    Button
        CheckButton
    Dialog
        EntryDialog
    Field
    Object1D
        BarGraph
        Dial
        Stripchart
    Page
        DisplayPage         -- Periodically updates.
        MemoryPage          -- For memory dumps.
    ScrolledList
    Separator
    Timer
    Variable                -- Local variables.
        RemoteVariable      -- Remote variables (on the LZP).

Variable objects are used to get/set local/remote variables. In the case of a RemoteVariable, a "region Get variable" command is sent to the gentle server on the LZP system; the gentle server peeks the value and sends its back to moi.

The display objects (Field, BarGraph, Dial, and Stripchart) each contain a Variable object, either local or remote. When you invoke the Update method of a display object, it Gets the value of its variable and updates its display. The most commonly used display object, Field, consists of a label and a display/entry field:

                                     .----------.
                         Session ID: | 12345678 |
                                     `----------'

When a Field is Updated, it retrieves the value of its variable and places it in the display/entry field. If you type in a new value in the display/entry field, the new value is stored in the variable (e.g., over on the LZP rack). A Field's label can also function as a button. I use this capability in the Packet Break List page: clicking on the "Next Break" label advances the page to the next break entry.

Box objects are used to group display objects. For example, a two-column display is created by placing two boxes side by side. Invoking Update on a box results in Update being applied to each display object in the box.

Page objects provide a higher-level grouping of display objects. The bare-bones Page class is used for interactive pages; e.g., the LZP and SDS command panels. The DisplayPage class contains a timer that periodically invokes Update on the display objects (or boxes) in the page. Display pages are automatically given three buttons at the bottom of the window:

Print - spools a PostScript dump of the page to the printer,
Freeze - suspends/resumes updates, and
Close - closes the page.

Memory pages display memory dumps from the LZP rack in a scrolling window.

The ScrolledList class provides a generic scrolling list capability. Scrolled lists are used:

  1. For the event message/command history display on moi's main window.
  2. To display catalog lists and data set lists on the LZP and SDS command panels.
  3. To display memory dumps on a memory page.

Individual items in a list can be selected; this capability is used in (1) to recall previous commands and in (2) to select a catalog to activate or a data set to distribute.

Display Pages

The Page class is defined in [incr Tcl] as:

    class Page {
        member displayWindow
        member infoArray
        member objectsArray
        member title
        constructor()
        destructor()
        method AddObj()
        method DeleteObj()
        method GetInfo()
        method GetObj()
        method Iterate()
        method Print()
        method SetInfo()
    }

objectsArray is a list of the display objects on the page; infoArray is used to store and lookup arbitrary information.

The DisplayPage class adds several new methods to the base Page class:

    class DisplayPage {
        inherit Page
        member updateInterval
        member isFrozen
        constructor()	-- Creates Print, Freeze, Close buttons.
        destructor()
        method Freeze()	-- Suspends/resumes updating.
        method Update()	-- Updates each object in window.
    }

The Update method Iterates through the objectsArray, invoking the Update method of each display object in the array. The Update method in an individual object retrieves its variable's value (e.g., from the gentle server on the LZP rack) and updates its display.

Creating a display page is a simple matter. The following example is taken from the script file that creates the XP status page (see "/folks/alexm/local/lib/tcl/lzp/xpstatus.tcl"):

  1. Create a blank page:
        set page [DisplayPage #auto -title "XP Status"]
        set window [$page Window]

  2. Add display objects (e.g., Fields, ScrolledLists, Stripcharts) to the page:
        CenteredText [$window] "-- XP Status --"
        $page AddObj inProgress                  [Field #auto $window "Packet Output:" [...]]
        $page AddObj sessionID                  [Field #auto $window "Session ID:" [...]]
        ... and so on ...


"[...]" specifies what variable is bound to the Field and is omitted for the sake of clarity. When the page is created, a periodic timer is started; whenever the timer fires (e.g., every 5 seconds), the page updates.

moi currently supports the following display pages:

Subsystem Status Pages -
MC Status
LZP Status
HF Status
RS Status
XP Status
VC Status (XP)
Source Status (XP)
RE Status
AP Status
DP Status

Segment Directory Pages -
Segment Directory Header (SDH)
Session Description Table (SDT)
Spacecraft Sensor List (SSL)
Source Reference Table (SRT)
Source Index Table (SIT)

Packet Break List (PBL)
AP Segment Ordered List (SOL)

Because everything is coded in Tcl and [incr Tcl], you can add a new subsystem status page in 15 minutes or less:

  1. Create the status block definition script (e.g., "defineXP.tcl") that maps to and defines the layout of the status block.

  2. Create the subsystem status display page (e.g., "pageXP.tcl").

  3. Add a menu entry for the new page to the LZP script ("lzp").

Modifying an existing page is just as easy and quick. Although I currently don't do this, such changes could be made while moi is still running.

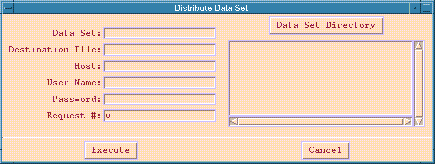

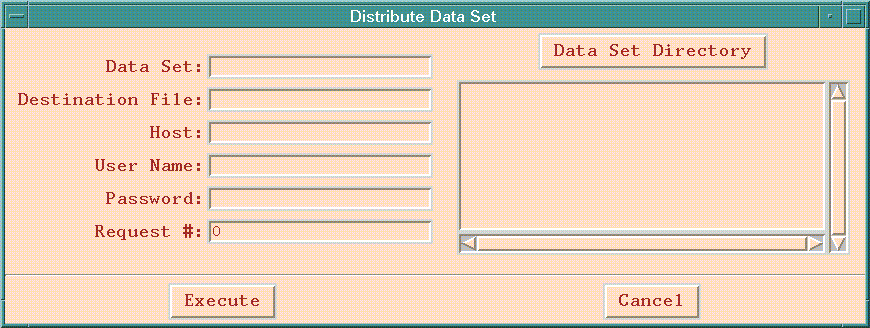

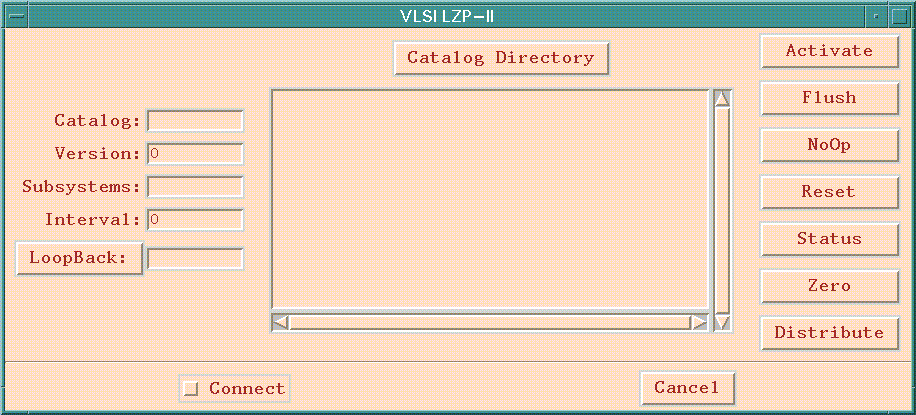

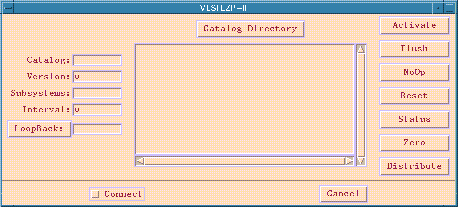

MEDS Command Panels

The MEDS command panels are used to send commands to the LZP and Spacecraft Data Simulator (SDS) racks. (Or to any rack, if desired.) Across the bottom of a command panel are two buttons:

Connect - connects and disconnects from the target Master Controller.
Cancel - exits the command panel; the MC connection, if up, stays up.

Down the left side of the command panel is a column of Fields for:

  1. Catalog name
  2. Version number
  3. Subsystems (for commands directed to subsystems)
  4. Interval (for status updates)
  5. Loopback text

In the center of the command panel is a scrolling list of the available catalogs; clicking on a catalog moves its name to the catalog name Field. On the right side of the command panel is a column of buttons:

Activate - activates the catalog whose name is found in the catalog name Field.
Flush - flushes the current session.
NoOp - sends a NoOp to the target subsystem(s).
Reset - resets the target subsystem(s).
Status - initiates the sending of status blocks.
Zero - zeros the target subsystem(s).
Distribute - invokes the data distribution panel.

The Distribute button brings up the data distribution panel (useless for the SDS). This panel is similar to the command panel: the available data sets are displayed in a scrolling list and the Field entries on the left side are used for entering the information needed for FTP transfers. As with the command panel, clicking on a data set moves its name into the data set name Field.


Alex Measday  /  E-mail
